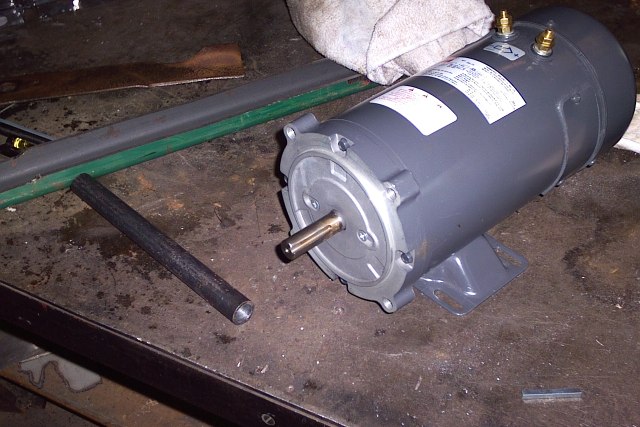

When mounting the motor to the mower deck the most important thing was to make sure it was centered and properly secured. I made sure it was centered by measuring an equal distance from the sides of the motor to the outside diameter of the mower. I secured the motor to the deck with four 3/8" bolts with washers. Adding washers between the motor and the deck allowed me to raise different sides of the motor to level. I needed to place two washers on the front two bolts to bring the motor up to level.

I struggled with the decision to the way I should mount the motor. Should I face the terminal studs toward the back of the mower to protect them and to allow easy access to the battery or toward the front to allow the battery mount to attach to the motor base? After trying the different variations I realized that the battery must be mounted to the motor base to provide the propper support to the battery. (See battery mounting above for more info.)
